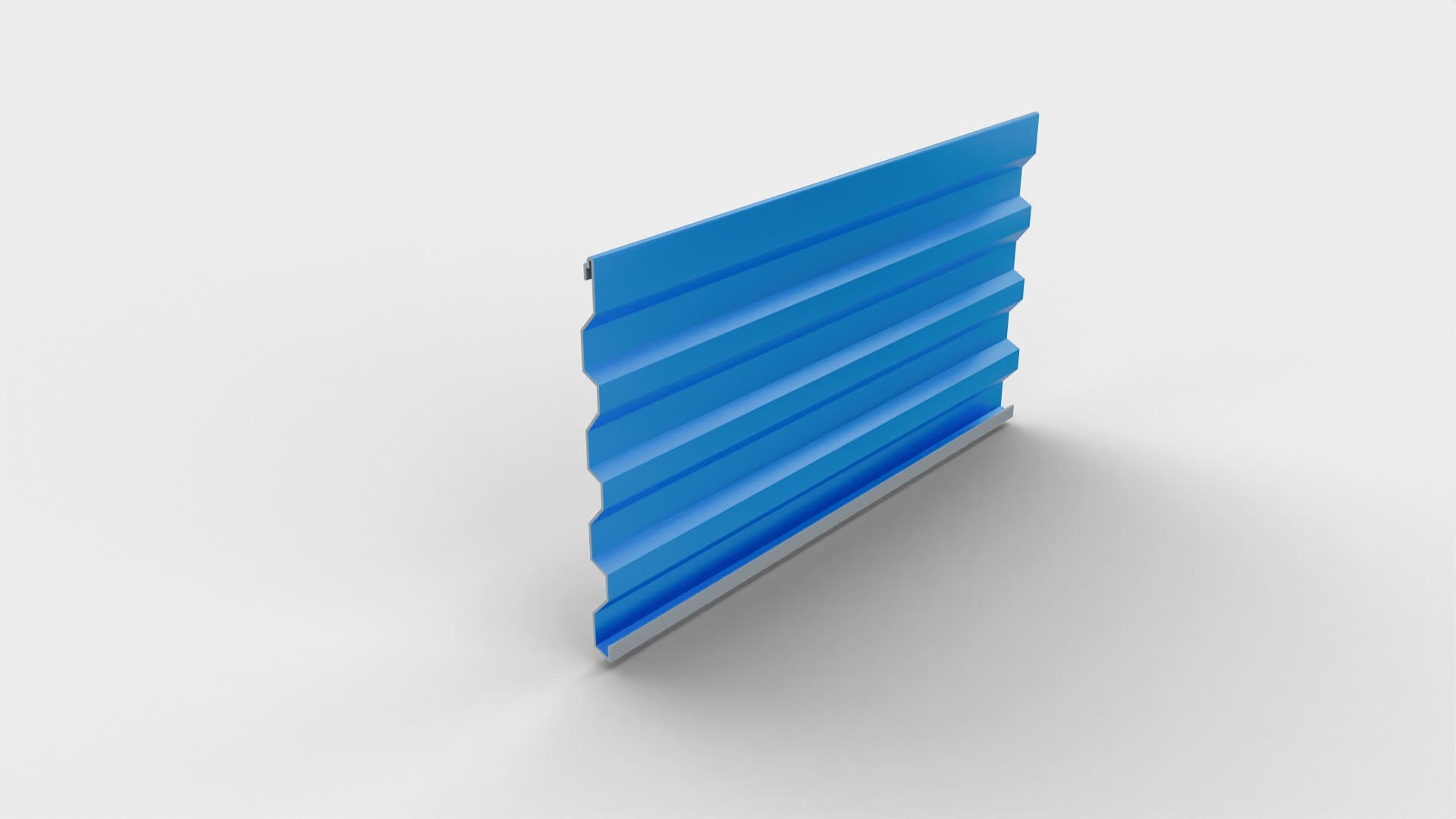

Wave
Available in both fixed and floating systems, DG Metal’s Wave panels are concealed fastener wall panels that can be installed vertically or horizontally over solid substrate or subframing. Wave Fixed is installed with Waves integral fastening flange which is roll formed into the panel during the manufacturing process and can be utilized for panel lengths or 40′ or less. Wave Floating panels utilize separate clips and should be specified for panel lengths of 40′ or greater.
Details:
-
Concealed fastener wall panel.
-
Typically installed horizontally, but can be installed vertically.
-
Wave Fixed used for panel lengths 40′ or less.
-
Wave Fixed has a concealed fastening edge.
-

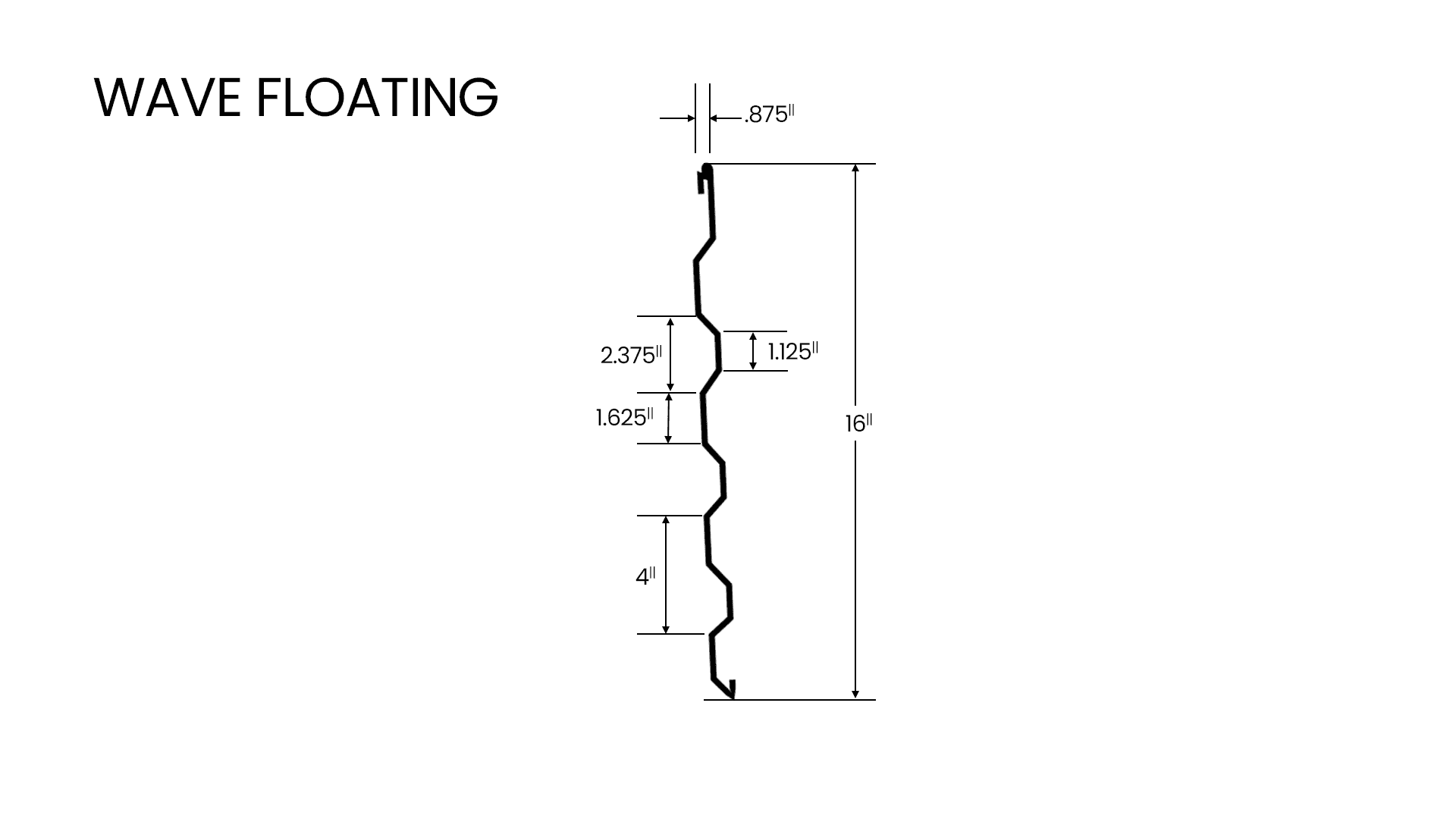

Wave Floating used for panel lengths greater than 40′.
-
Wave Floating utilizes a clip.
-
Can be installed over solid deck or open framing.
-
Wave is produced in Houston, TX.
Panel Options
-
Panel Width: 16”
-
Coating: Kynar 500® (PVDF)
-
Substrate: Standard 24 GA Galvalume®
Optional 22 GA Galvalume®
Testing Data:
For any available Test Data, please ask your DG Metals sales representative.
