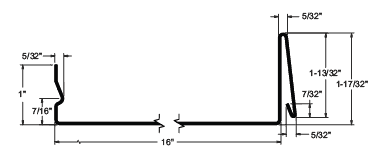

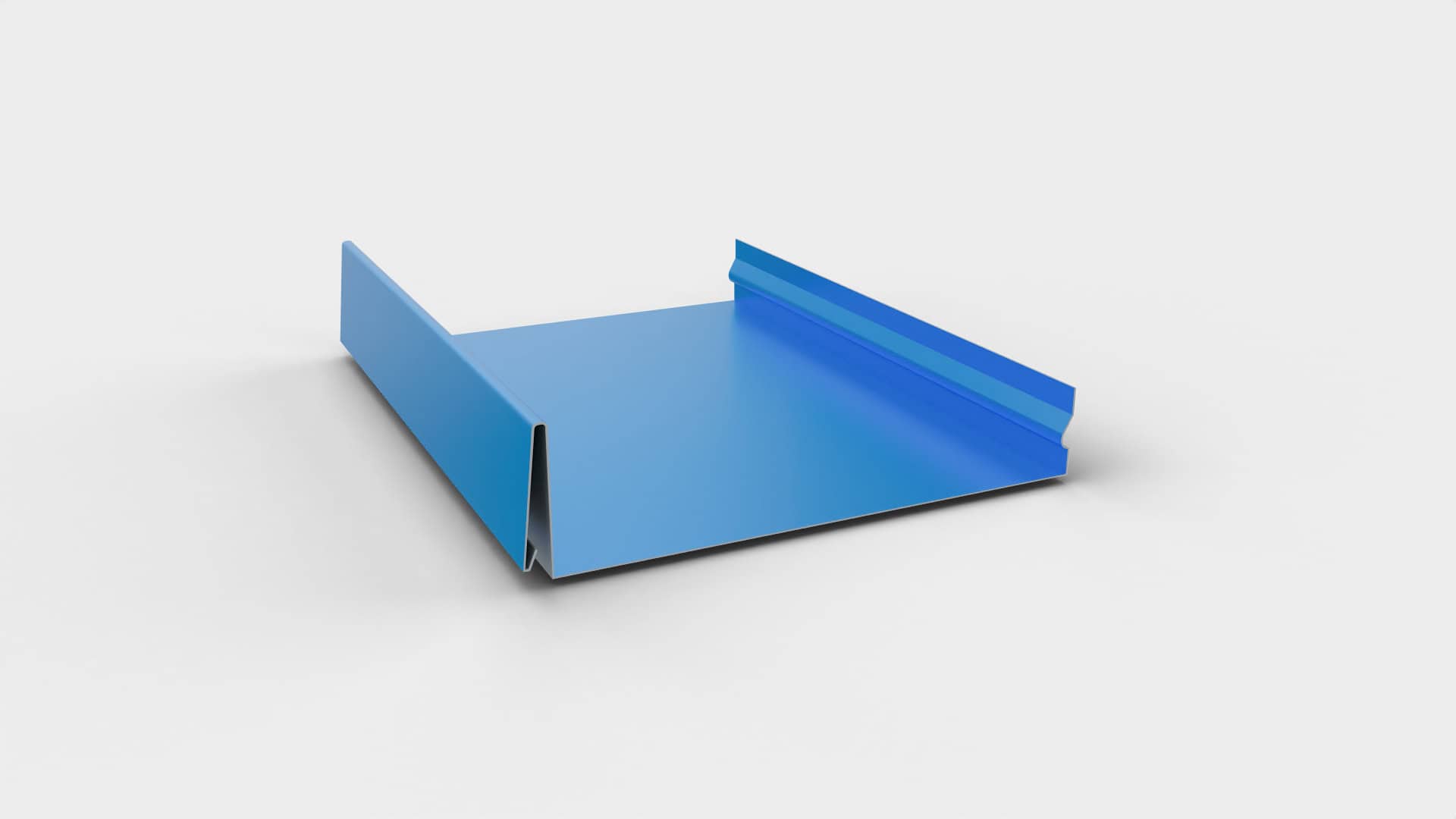

1.5″ SnapLock 450+ Standing Seam
Panel Information:
-
Panel Type: Standing Seam
-
Panel System: SnapLock
-
Panel Width: 16”
-
Seam Height: 1.5”
-
Panel Material: 22 GA – 24 GA Min
-
Panel Surface: Smooth / Embossed Optional
-
Panel Clip: Required Pre Engenerring
-
Minimum Slope: 3/12
-
Substrate: Plywood
Panel Testing:
-
Uplift Resistance: UL 90
-
Hail Rating: Class 4 Impact UL 2218
-
Fire Rating: UL Class A
-
Texas Department of Insurance Approval: RC-564
Panel Notes:
- With this 24 GA, 16” wide panel engineering, you may
opt to use heavier gauge coil and narrower width panels.
Clip spacing will not change. - This panel uses a 20” coil.
- This panel uses 4-1/8” of material to form the panel.
- This panel is approved for Weathertight Warranties.
