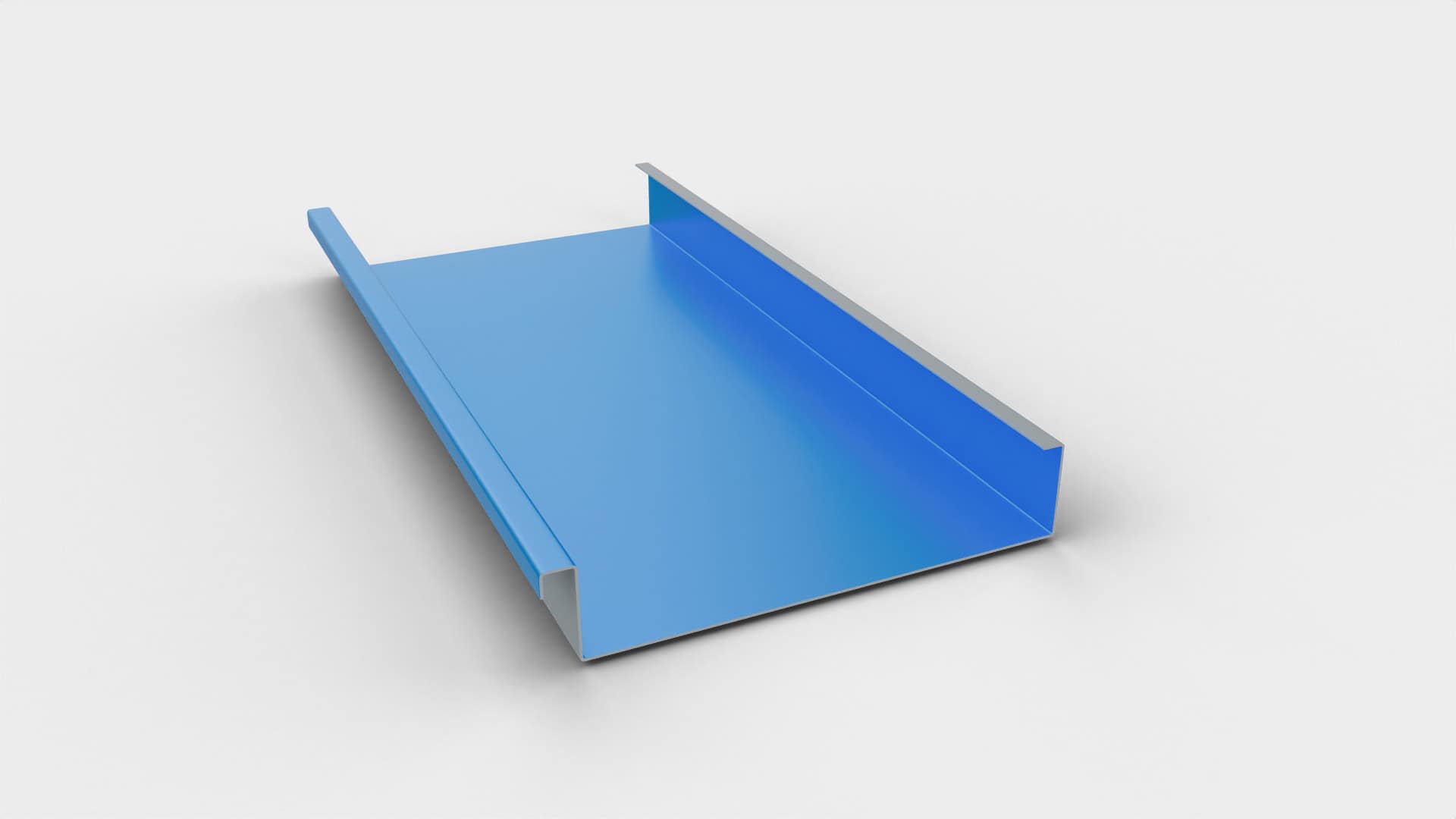

Panel Type: Standing Seam

Panel System: Mechanical

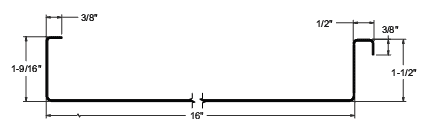

Panel Width: 16”

Seam Height: 1.5”

Panel Material: 22 GA – 24 GA Min, 0.32 – 0.40

Panel Surface: Smooth / Embossed Optional

Panel Clip: Required Pre-Engineering

Minimum Slope: 2/12

Substrate: Plywood, B-Deck, B-Deck w/ISO

Uplift Resistance: UL 580, UL 1897, UL 90

Air Infiltration: ASTM E 1680

Wind Driven Rain: TAS 100

Water Penetration: ASTM E 1646

Water Submersion: ASTM E 2140

Hail Rating: Class 4 Impact UL 2218

Fire Rating: UL Class A

Texas Department of Insurance Approval: RC-386* RC-396* RC-397*

FBC HVHZ & Non-HVHZ Approval: FL18316

With this panel engineering, you may opt to use heavier gauge coil and narrower width panels. Clip spacing will not change.

For slopes lower than 2/12 roof pitch, contact DG Metal Technical Department for further instillation requirements.

Maximum coil width for engineered systems is 20”.

This panel uses 4” of material to form the panel.

Clip Relief, Bead Ribs, Striations, and Pencil Ribs do not affect the engineering or function.

This panel is approved for Weathertight Warranties.
