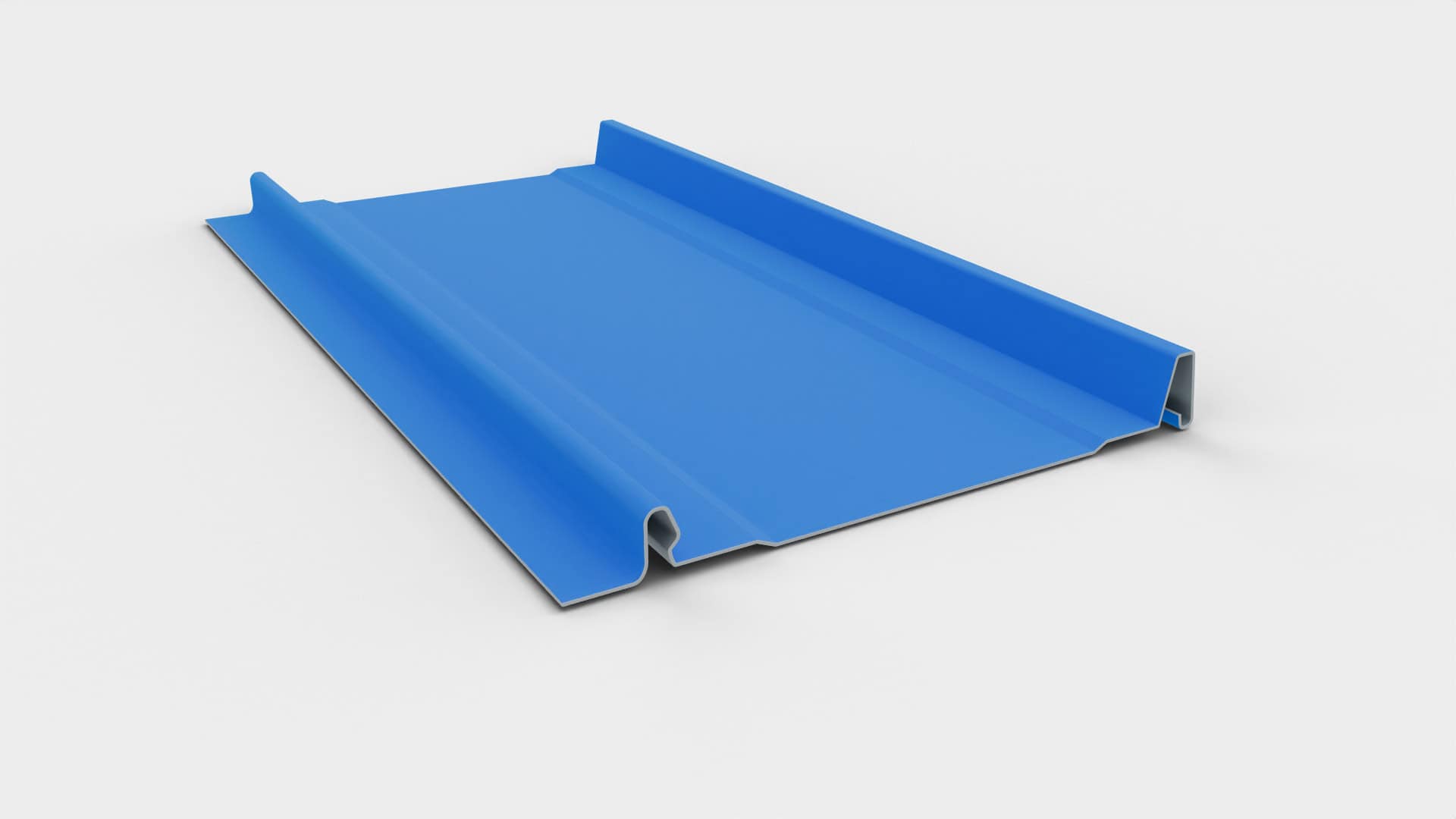

1.0″ FF SnapLock Standing Seam
Panel Information:
-
Panel Type: Standing Seam
-
Panel System: SnapLock
-
Panel Width: 16”
-
Seam Height: 1.0”
-
Panel Material: 22 GA – 24 GA Min
-
Panel Surface: Smooth / Embossed Optional
-
Panel Clip: None
-
Minimum Slope: 3/12
-
Substrate: Plywood
Panel Testing:
-
Uplift Resistance: UL 90
-
Hail Rating: Class 4 Impact UL 2218
-
Fire Rating: UL Class A
-
Texas Department of Insurance Approval: RC-560
Panel Notes:
-
With this 24 GA, 16” wide panel, you may opt to use heavier gauge coil and narrower width panels. Fastener spacing will not change.
-
Maximum coil width for engineered systems is 24”.
-
This panel uses 4-1/16” of material to form the panel.
-
This panel is NOT approved for Weathertight Warranties.
